High Parameter Waste Heat Boiler Technology
Technical team
The technical team is experienced and fully equipped with specialized expertise.
Numerous achievements
Numerous procurement and operational performance records, establishing a design big data repository.
Wide coverage
Collaborates with mainstream boiler manufacturers in China, drawing on the best from various sources.
Full coverage
From medium temperature and medium pressure (IP) to medium temperature and high pressure (HP), covering all main steam parameters.
Overall performance guarantee
Providing a comprehensive performance guarantee to customers.
Mitigated customer management
Providing a comprehensive performance guarantee to customers.
After-sales service
Comprehensive consulting and after-sales services (design consulting, Kangheng Yuzao, after-sales service department).
High Parameter Waste Heat Boiler - Technical Challenge

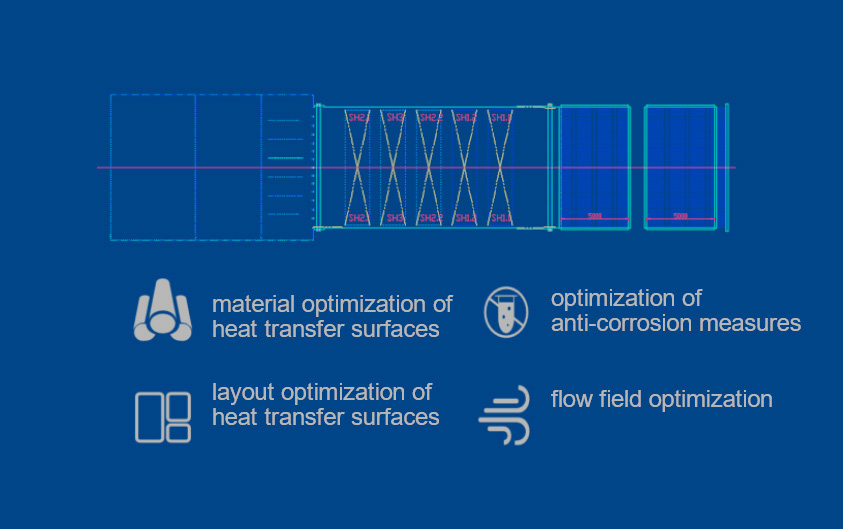

Boiler High Temperature Corrosion Countermeasures
-

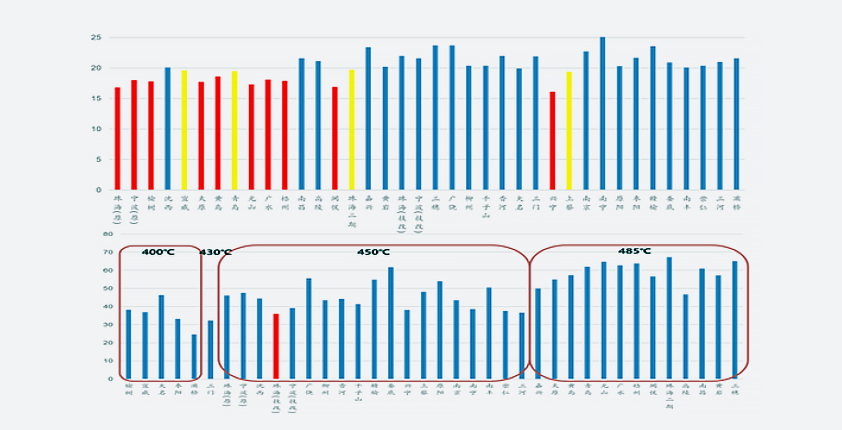

1Determine the boiler configuration based on big data analysis.
-

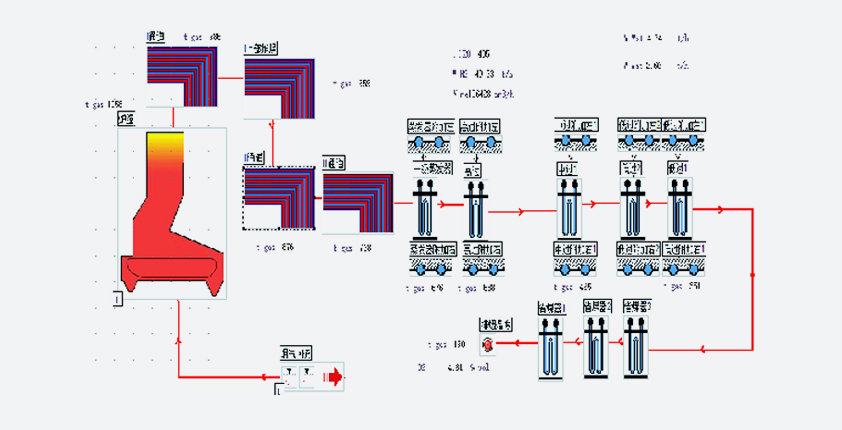

2Optimize the boiler parameters based on thermal calculation verification.
-

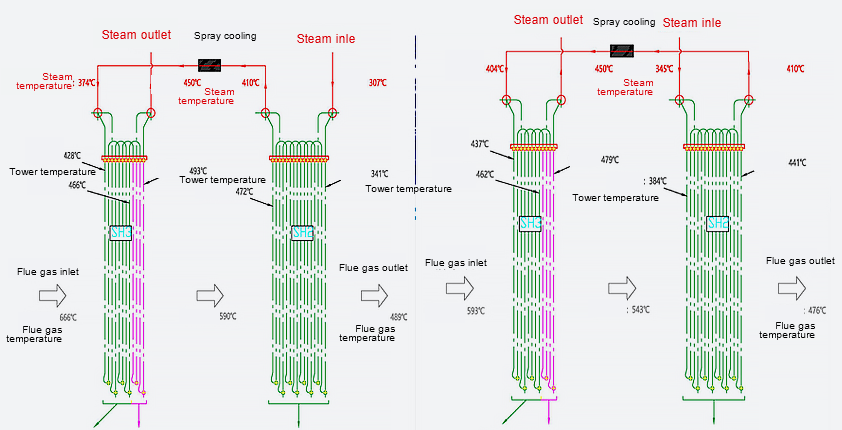

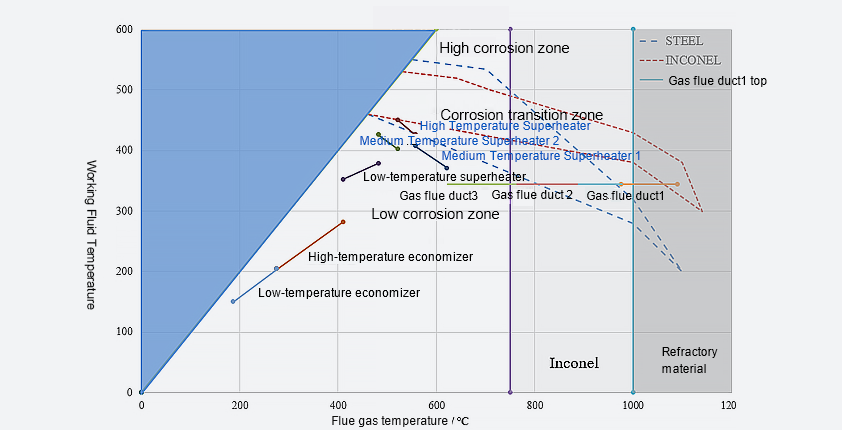

3Determine the material and design the fluid flow direction of different parts based on corrosion curves.
-

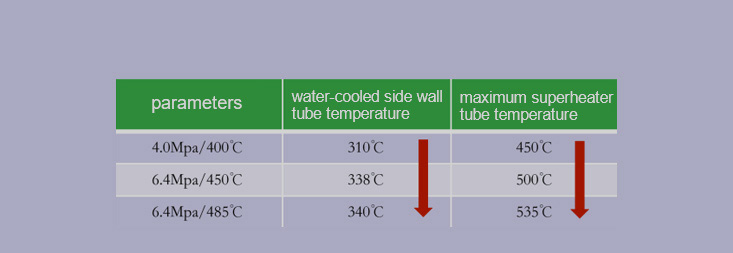

4Verify the corrosion risk of different parts through wall temperature calculation.
Classic Case

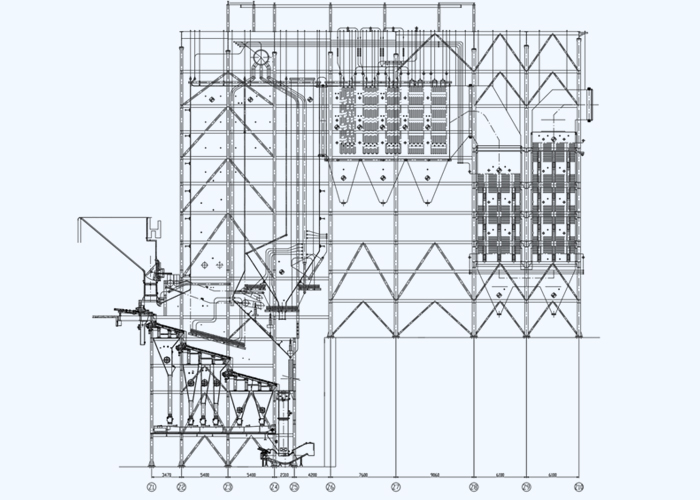

High-parameter Boiler Design Scheme —— Sanhe Project
Boiler: Single steam drum Boiler, Natural CIRC, High pressure Boiler, π-type Arrangement
Waste processing capacity: 1000 t/d
Waste CV: 1900 kcal/kg
Rated steam generation: 117.3 t/h
Rated steam temperature: 450 °C
Rated steam pressure: 13.5 MPa
Feed Water Temperature: 150 °C
Exhaust Gas Temperature: 190 °C
Temperature Reduction Method: Three-stage water spraying
Reheating Method: External Boiler reheating
